liquid Filter bag welding machine

Ultrasonic welding machine for liquid filter bags

Wuxi Zhongcheng ultrasonic company specializes in the supply of a complete set of liquid filter bag hot melt welding equipment -

A roll of cloth with a fixed width enters the automatic hot melt welding machine into a cylinder shape and is cut into the desired length through the cutting process.

One end of the cylinder is fixed by hot melt welding with the plastic ring (two kinds of plastic ring material, different size of plastic ring corresponding to different welding fixtures);

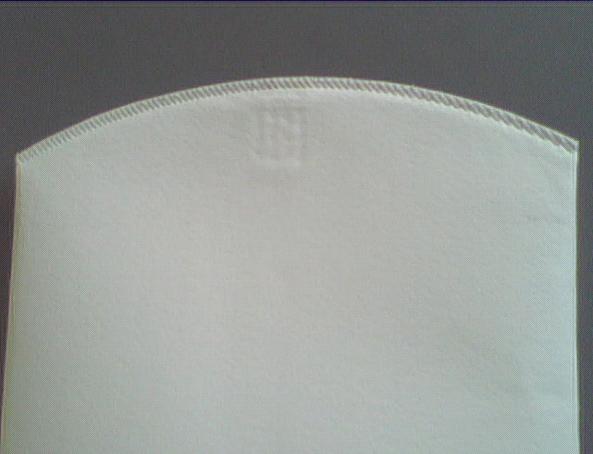

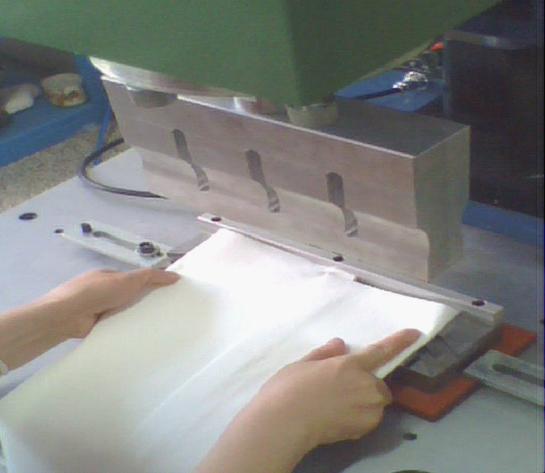

The other end of the cylinder for ultrasonic hot melt welding, can be welded into a circular arc or triangle, and finally trimming processing and wool collection processing.

Through the ultrasonic hot melt welding process, a triangle or circular arc welding can meet the diameter of the liquid filter bag less than 220mm sealing.

Supply liquid filter material, filter bag plastic ring, stainless steel ring.

For detailed production process, please contact us by [email protected]

Designed for attaching plastic circular collars to nonwoven filter bags
Suited for low-production assembly of bag filters for chemical and industrial liquid applications
Can assemble between 50 and 80 bags per hour*
Six-step welding process takes as little as 45 seconds to produce a reliable 360-degree bond
Speeds production by eliminating need for adhesives
Easy and quick tooling changes to accommodate collars from four to seven inches in diameter
Minimal training required
*For assembly of up to 200 bags per hour
video：https://youtu.be/-sEfTTOvK58
Email：  [email protected]                   [email protected]



The latest in welding technology - liquid filter bag!Professional custom filter bag!
